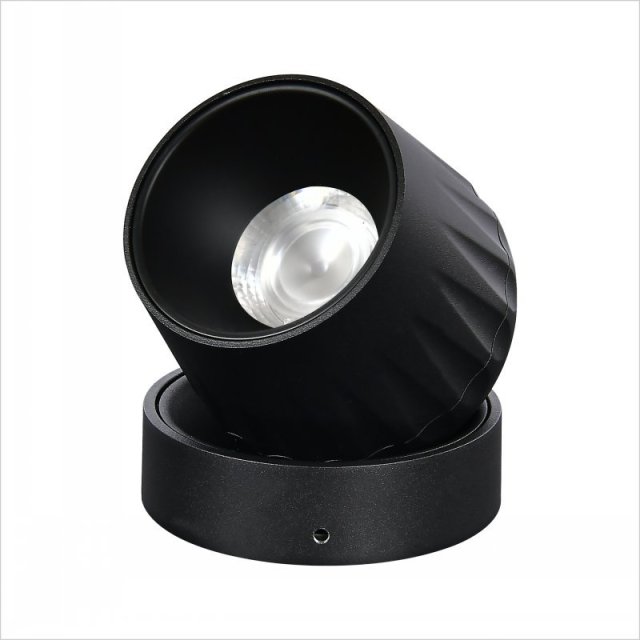

surface mount led ceiling light

Color:
White
Black
Color Temp.:
2700K
3000K
4000K
5000K
6000K
Dimmable:
Non-dimmable
Traic
0-10V
Dali
Tuya Smart
Hue Smart
  • Descripción
  • Package


Products Information






Code TS-DO15WSK
Rated Power 15W
Input Current 68mA@220V
Lumens 1500lm +/-5%
Beam Angle 15°, 24°, 36°, 60°
Size D92*H100MM


Common Data



Products Name
Body Color Sandy White / Sandy Black
Reflector Color Matte Black/ Matte White / Matte Silver/ Bright Silver / Gun Black / Golden
Materials Aluminum Body + Lens + PC Reflector
IP Rate IP44
Add Honeycomb Not Available
Anti glare Yes
UGR <19
Flicker Free Yes
Installation Surface Mounted Type
Certificates CE-EMC, CE-LVD, RoHS, FCC, C-tick


Electrical Data



Working Voltage 220-240VAC / 100-277VAC
Frequency 50/60Hz
Power Factor(PF) >0.9
Driver Brand Lifud / Eaglerise / Kegu / Philips / Osram
Dimmable Non-DIM / TRIAC / 0-10V / Dali / Push Dimming
Total Harmonic Distortion(THD) ≤15%


Lighting Source Data



Color Temperature 27/30/40/45/50/60K Warm White/Neutral White/ Day White/ Cool White
Lighting Efficiency 100lm/W (COB) , 120lm/W(SMD)
COB chip Brand Bridgelux / CREE / Philips / Osram COB / Epistar SMD
Color Render Index Ra>80 / Ra>90 / Ra>95
SDCM <5
Anti Glare Yes (UGR<19)
Flicker Free Yes


Application



Ambient Humidity 10%~90%
Ambient Temp. -20 ~ 50℃
Storage Temp. -30 ~ 80℃
Working Temp. < 60℃ (Ta=25℃)
Life Span >50000 Hours (LM80)
Warranty 3 Years
