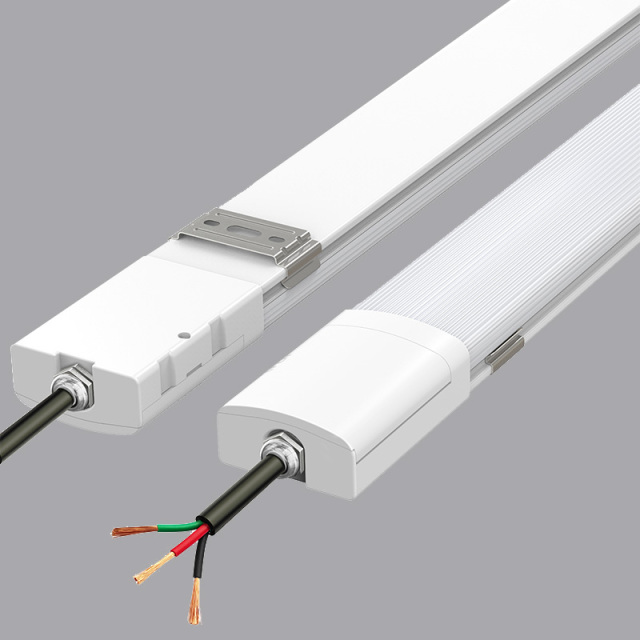

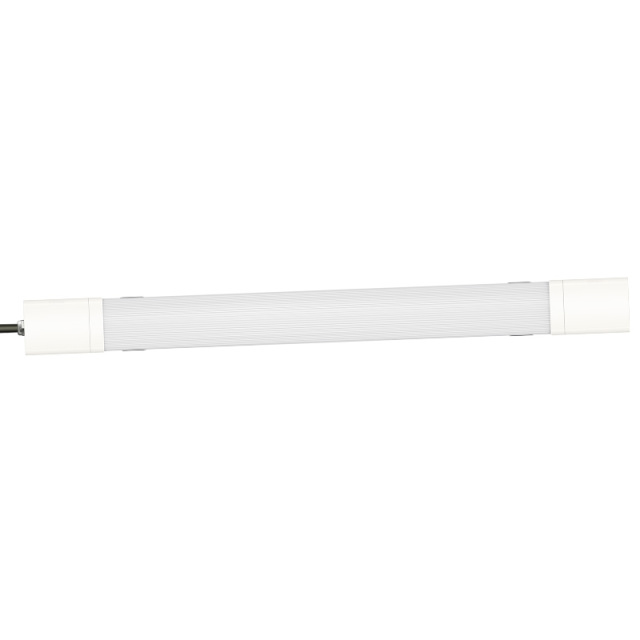

slim Dust proof LED batten lamp 4ft 5ft

No.TS-BA203645WF
Power:
20W-2ft
36W-4ft
45W-5ft
  • Descripción
  • Package


Products Information






Code TS-BA20WF TS-BA36WF TS-BA45WF
Rated Power 20W 36W 45W
Length 600MM(2ft) 1200MM(4ft) 1500MM(5ft)
Efficiency 120-130lm/W 120-130lm/W 120-130lm/W
Lumens 2400lm +/-5% 4320lm +/-5% 5400lm +/-5%
Beam Angle 160° 160° 160°
IP Rate IP65 IP65 IP65
IK IK10 IK10 IK10
Size L600xW58xH29MM L1200xW58xH29MM L1500xW58xH29MM

High Efficiency Version

Code TS-BA20WFH TS-BA36WFH TS-BA45WFH
Rated Power 20W 36W 45W
Length 600MM(2ft) 1200MM(4ft) 1500MM(5ft)
Efficiency 150-160lm/W 150-160lm/W 150-160lm/W
Lumens 3000lm +/-5% 5400lm +/-5% 6750lm +/-5%
Beam Angle 160° 160° 160°
IP Rate IP65 IP65 IP65
IK IK10 IK10 IK10
Size L600xW58xH29MM L1200xW58xH29MM L1500xW58xH29MM


Common Data



Products Name
Body Color White
Reflector Color Milky cover
Materials PC Body (anti-UV, UL94-V2, light transmittance 82-85%)
IP Rate IP65
IK Rate IK10
Flicker Free Available
Installation Surface / Suspended installation
Certificates CE-EMC, CE-LVD, RoHS, FCC, C-tick


Electrical Data



Working Voltage 220-240VAC / 100-277VAC
Frequency 50/60Hz
Power Factor(PF) >0.9
Driver Brand Constant Current Driver
Dimmable Non-DIM
Emergency Available
Microwave Sensor Available
Total Harmonic Distortion(THD) ≤15%


Lighting Source Data



Color Temperature 27/30/40/45/50/60K Warm White/Neutral White/ Day White/ Cool White
Lighting Efficiency 120-160lm/W
Chip Brand Bridgelux, Epistar, Lumileds Or Other
Color Render Index Ra>80
SDCM <5
Anti Glare Yes, (UGR<19)
Flicker Free Yes


Application



Ambient Humidity 10%~90%
Ambient Temp. -20 ~ 50℃
Storage Temp. -30 ~ 80℃
Working Temp. < 60℃ (Ta=25℃)
Life Span >50000 Hours (LM80)
Warranty 3 Years
