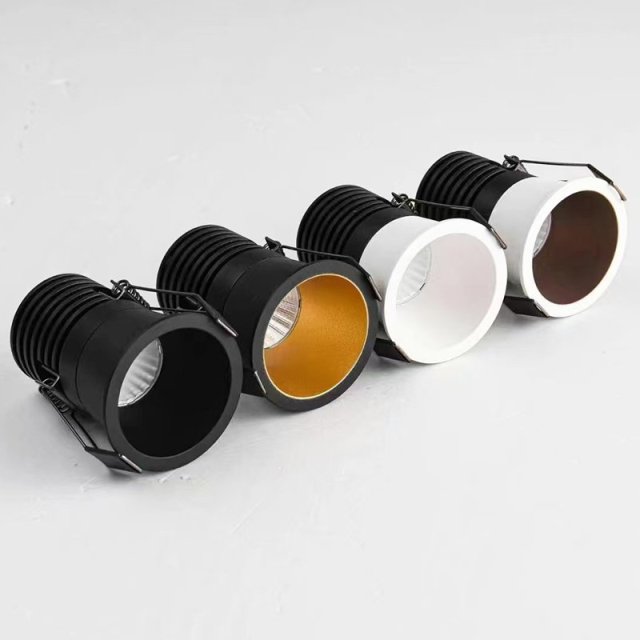

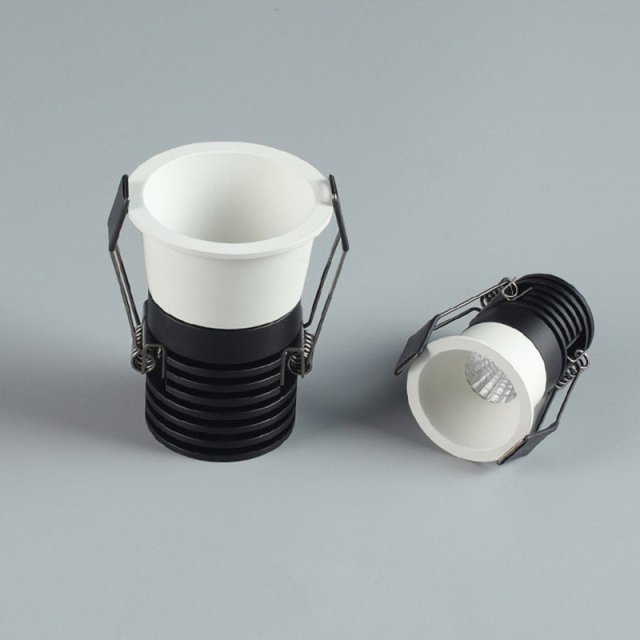

TS-DO15-50WM2R
- ES
 |
 |
 |
| Code | TS-SP05WA3 | TS-SP09WA3 | TS-SP15WA3 |
|---|---|---|---|
| Rated Power | 5W | 9W | 15W |
| Cut-Out | D 35MM | D 55MM | D 65MM |
| Input Current | 23mA@220V | 41mA@220V | 68mA@220V |
| Lumens | 500lm +/-5% | 900lm +/-5% | 1500lm +/-5% |
| Beam Angle | 10°, 24°,50° | 24°, 38° | 24°, 38° |
| Size | D40xH58MM | D60xH78MM | D74xH100MM |
| Products Name | |
|---|---|
| Body Color | Sandy White / Sandy Black |
| Reflector Color | White/Black/Gold |
| Materials | Aluminum Body + Lens / Reflector |
| IP Rate | IP40 |
| Add Honeycomb | Not Available |
| Anti glare | Yes |
| UGR | <19 |
| Flicker Free | Yes |
| Installation | Recessed Type |
| Certificates | CE-EMC, CE-LVD, RoHS, FCC, C-tick |
| Working Voltage | 220-240VAC / 100-277VAC |
|---|---|
| Frequency | 50/60Hz |
| Power Factor(PF) | >0.9 |
| Driver Brand | Lifud / Eaglerise / Kegu / Philips / Osram |
| Dimmable | Non-DIM / TRIAC / 0-10V / Dali / Push Dimming |
| Total Harmonic Distortion(THD) | ≤15% |
| Color Temperature | 27/30/40/45/50/60K Warm White/Neutral White/ Day White/ Cool White |
|---|---|
| Lighting Efficiency | 100lm/W (COB) , 120lm/W(SMD) |
| COB chip Brand | Bridgelux / CREE / Philips / Osram COB / Epistar SMD |
| Color Render Index | Ra>80 / Ra>90 / Ra>95 |
| SDCM | <5 |
| Anti Glare | Yes (UGR<19) |
| Flicker Free | Yes |
| Ambient Humidity | 10%~90% |
|---|---|
| Ambient Temp. | -20 ~ 50℃ |
| Storage Temp. | -30 ~ 80℃ |
| Working Temp. | < 60℃ (Ta=25℃) |
| Life Span | >50000 Hours (LM80) |
| Warranty | 3 Years |
